Cumulative AUC by Feature: Forward Selection Trajectory

This example visualizes the internal greedy forward-selection mechanics of CalfCV.

At each step, CalfCV evaluates all unselected features and appends the single feature (and coarse ±1 weight direction) that yields the highest cumulative ROC-AUC sum. The process terminates automatically when the AUC gain falls below auc_tol.

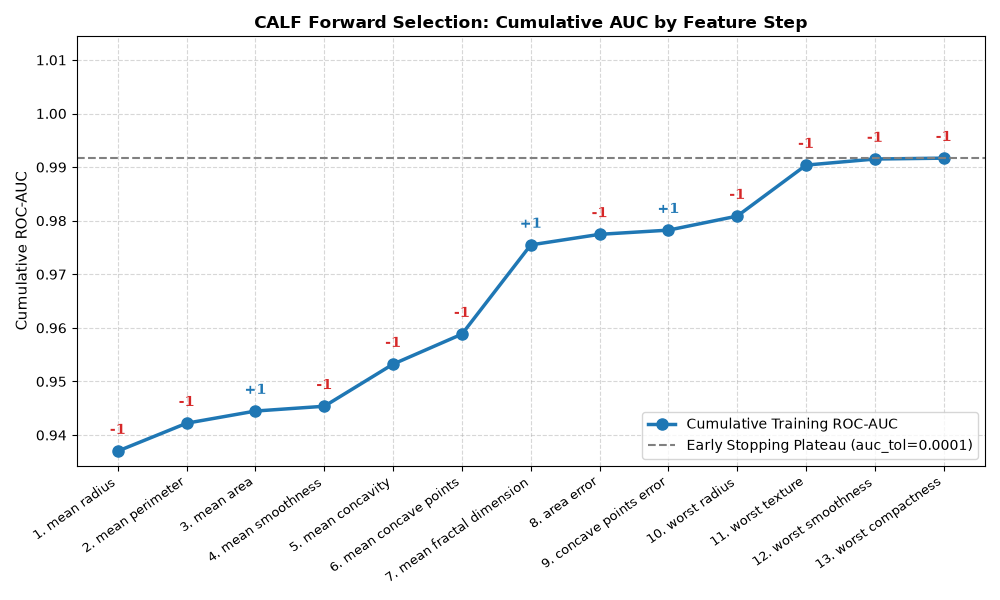

The weights (+1, -1) assigned at each step are displayed directly above the data points, while the corresponding feature added at each step is labeled along the X-axis.

Imports and Model Fitting

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from sklearn.datasets import load_breast_cancer
from sklearn.model_selection import train_test_split

from calfcv import CalfCV

X, y = load_breast_cancer(return_X_y=True, as_frame=True)
feature_names = X.columns.values

X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.3, random_state=42, stratify=y
)

clf = CalfCV(
    grid=[(-1, 1), (-1, 0, 1)],
    auc_tol=[1e-4, 1e-3, 1e-2],
    order_col=[True, False],
    cv=5,
    n_jobs=-1,
)
clf.fit(X_train, y_train)

CalfCV(auc_tol=[0.0001, 0.001, 0.01], cv=5, grid=[(-1, 1), (-1, 0, 1)],
       n_jobs=-1, order_col=[True, False])

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

Extract Forward-Selection Steps

best_calf = clf.model_.best_estimator_["classifier"]

# Because of the patch to `_utils.py`, these three arrays are now
# guaranteed to be the exact same length.
cumulative_aucs = best_calf.auc_
selected_indices = best_calf.feature_index_
assigned_weights = best_calf.weights_

steps = np.arange(1, len(cumulative_aucs) + 1)

# Format X-axis tick labels as "1. Feature Name"
x_labels = [
    f"{step}. {feature_names[idx]}" for step, idx in zip(steps, selected_indices)
]

Plot Clean Trajectory with Minimal Point Annotations

fig, ax = plt.subplots(figsize=(10, 6))

# Plot cumulative AUC curve
ax.plot(
    steps,
    cumulative_aucs,
    marker="o",
    markersize=8,
    color="#1f77b4",
    linewidth=2.5,
    label="Cumulative Training ROC-AUC",
)

# Minimal point annotations: Just display '+1' or '-1' directly above vertex
for step, auc, weight in zip(steps, cumulative_aucs, assigned_weights):
    weight_str = f"+{int(weight)}" if weight > 0 else f"{int(weight)}"
    ax.annotate(
        weight_str,
        (step, auc),
        xytext=(0, 10),
        textcoords="offset points",
        ha="center",
        va="bottom",
        fontsize=10,
        fontweight="bold",
        color="#1f77b4" if weight > 0 else "#d62728",
    )

# Highlight early-stopping cutoff line
optimal_tol = clf.best_params_["classifier__auc_tol"]
ax.axhline(
    y=cumulative_aucs[-1],
    color="gray",
    linestyle="--",
    linewidth=1.5,
    label=f"Early Stopping Plateau (auc_tol={optimal_tol})",
)

# Configure crisp X-axis tick labels
ax.set_xticks(steps)
ax.set_xticklabels(x_labels, rotation=35, ha="right", fontsize=9)

ax.set_ylabel("Cumulative ROC-AUC", fontsize=11)
ax.set_title(
    "CALF Forward Selection: Cumulative AUC by Feature Step",
    fontsize=12,
    fontweight="bold",
)
ax.grid(True, linestyle="--", alpha=0.5)
ax.legend(loc="lower right")

# Padding for point labels
ymin, ymax = ax.get_ylim()
ax.set_ylim(ymin, ymax + 0.02)

plt.tight_layout()
plt.show()

Step-by-Step Selection Summary

summary_df = pd.DataFrame(
    {
        "Step": steps,
        "Feature Added": [feature_names[i] for i in selected_indices],
        "Coarse Weight": [f"{int(w):+d}" for w in assigned_weights],
        "Cumulative AUC": np.round(cumulative_aucs, 4),
    }
)

print("\n" + "=" * 55)
print("GREEDY FEATURE SELECTION STEP SUMMARY")
print("=" * 55)
print(summary_df.to_string(index=False))

=======================================================
GREEDY FEATURE SELECTION STEP SUMMARY
=======================================================
 Step          Feature Added Coarse Weight  Cumulative AUC
    1            mean radius            -1          0.9370
    2         mean perimeter            -1          0.9422
    3              mean area            +1          0.9445
    4        mean smoothness            -1          0.9454
    5         mean concavity            -1          0.9532
    6    mean concave points            -1          0.9588
    7 mean fractal dimension            +1          0.9755
    8             area error            -1          0.9775
    9   concave points error            +1          0.9782
   10           worst radius            -1          0.9809
   11          worst texture            -1          0.9904
   12       worst smoothness            -1          0.9915
   13      worst compactness            -1          0.9917
